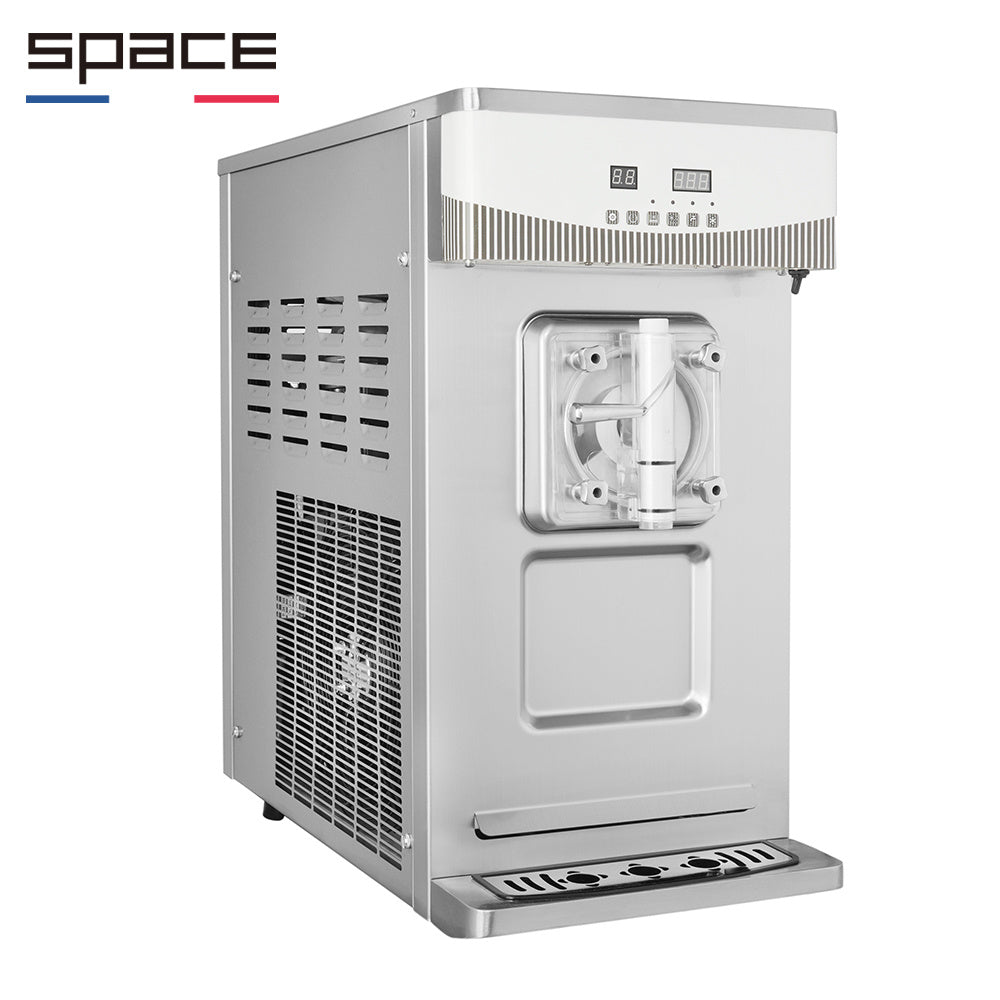

Space 8690 Frozen Beverage & Milkshake Machine
Space 8690 Frozen Beverage & Milkshake Machine
Request a quote
Equipment typically ships in 1 to 2 weeks.

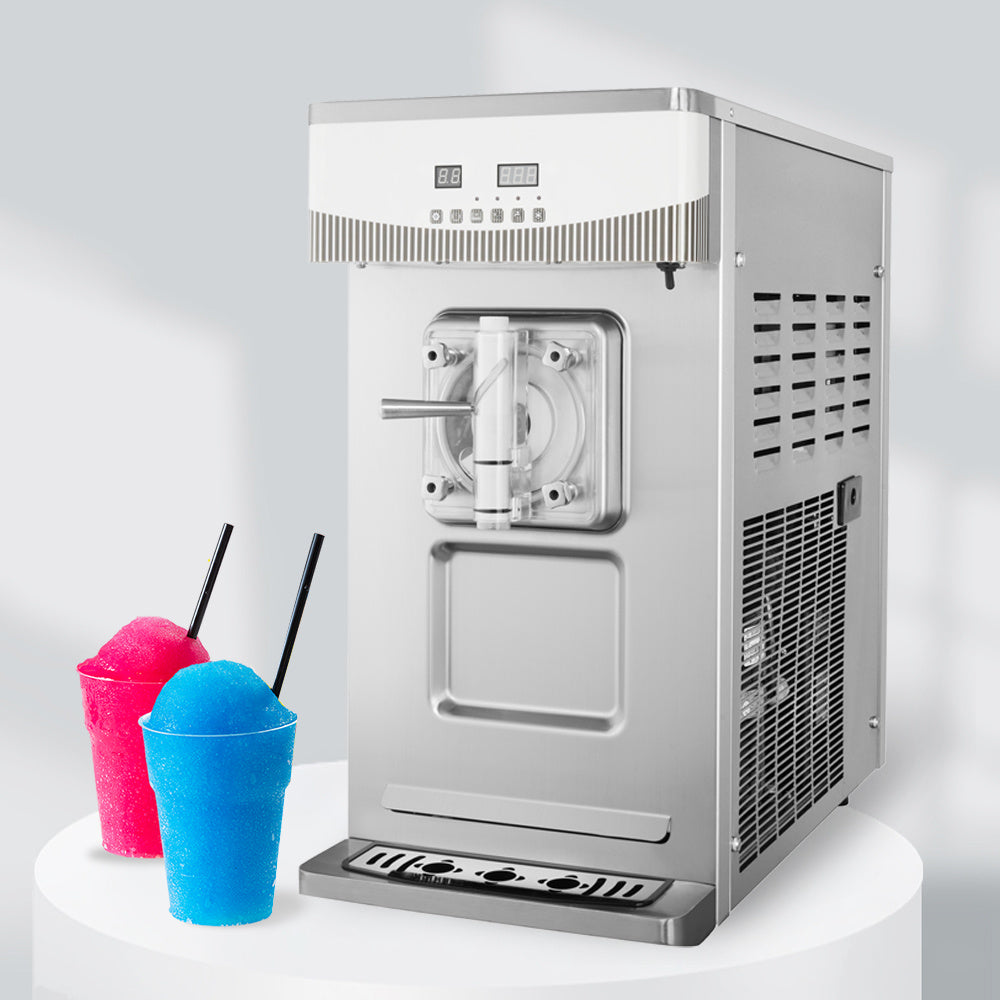

Counter-top frozen beverage machine for slush, milkshakes, frozen cocktails and frozen margaritas. A 6.9 litre freezing cylinder draws from a separately refrigerated 11 litre hopper, giving 60 litres per hour with a 4°C mix at 24°C ambient.

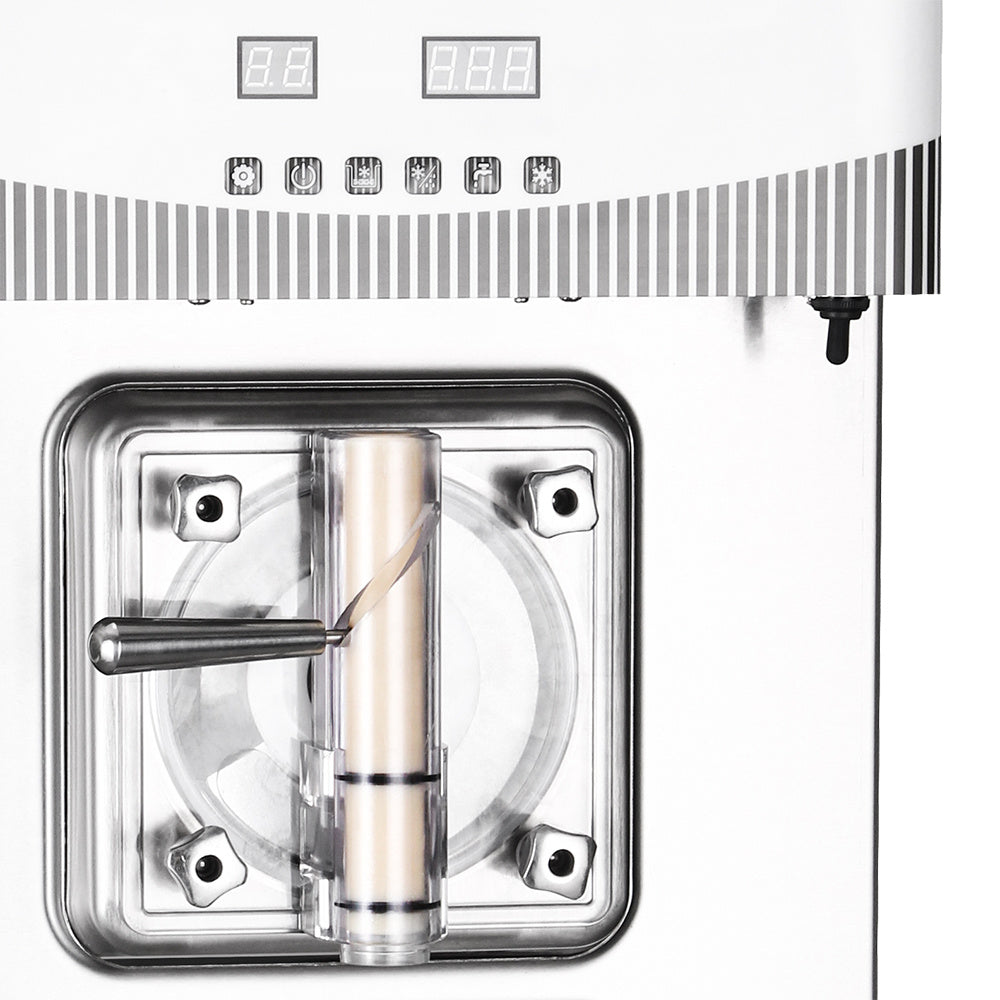

Microprocessor controls measure product viscosity and regulate refrigeration to hold consistent texture through the day, rather than running to a fixed timer. A mix low light tells staff to top up before the cylinder over-freezes. Hopper pre-cooling keeps mix below 4.4°C between services.
Air cooled, with a 2,800 BTU/hr R404a compressor and a 1 HP motor. Allow 6 inches of clearance on both sides. Requires a dedicated 208-230V commercial circuit.
Specifications
| Dimensions | 15-1/8" W × 29-3/4" D × 29-3/4" H (384 × 756 × 755 mm) |
|---|---|
| Capacity | 60 L/hour at 4°C mix and 24°C ambient · one 6.9 L freezing cylinder · one 11 L hopper |
| Electrical | 210-230V / 50Hz, 1.4 kW, 1 HP motor · 208-230V / 60Hz single or three phase built to order |
| Weight | 287 lb (crated) · 243 lb net |
| Details | Single flavour counter-top unit for slush, milkshakes, frozen cocktails and margaritas Microprocessor controls regulate refrigeration by measuring product viscosity Separate hopper refrigeration (pre-cooling) holds mix below 4.4°C Mix low light prompts a top-up before the cylinder over-freezes One compressor, 2,800 BTU/hr, R404a refrigerant, air cooled Allow 152 mm (6") clearance on both sides for correct airflow Dedicated electrical connection required; keep supply voltage steady while running Built to order: water-cooled condenser, cone dispenser, low-noise frequency converter Crated dimensions 530 × 850 × 950 mm ETL, ETL Sanitation and CE certified 60Hz North American configuration must be specified at time of order |
