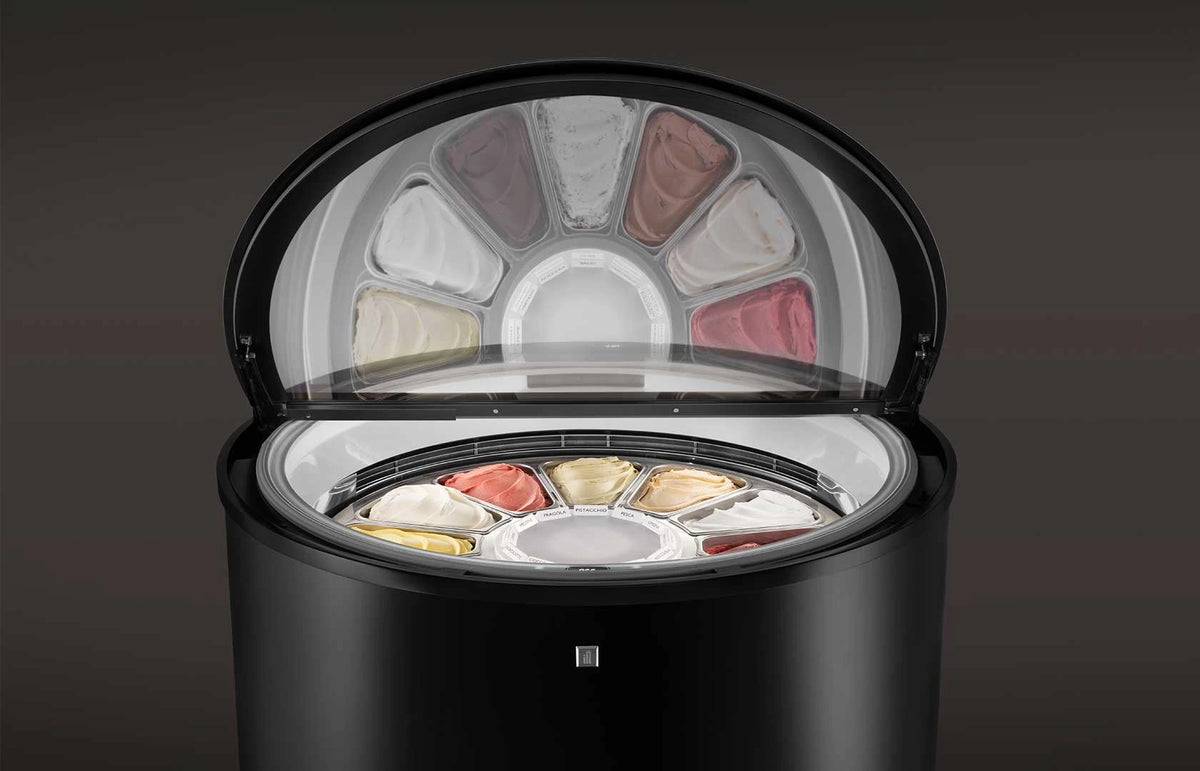

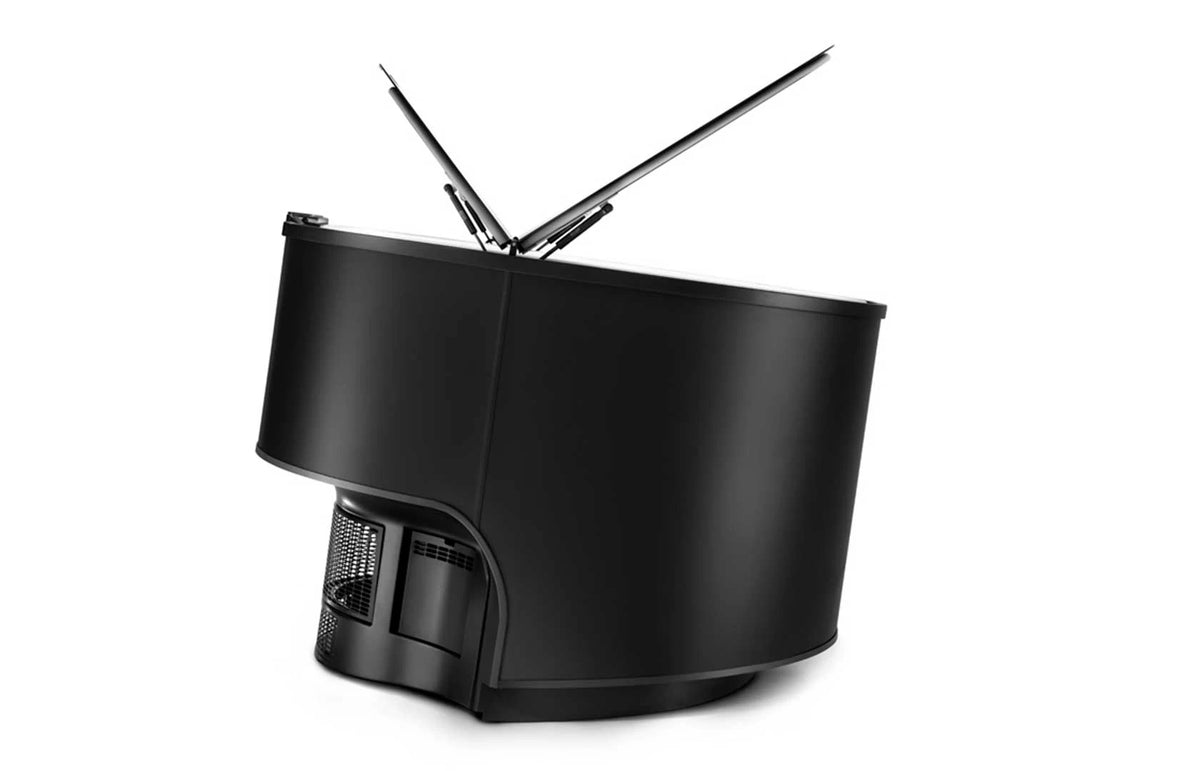

Rotating refrigerated display case from IFI, designed by Makio Hasuike & Co., versatile for gelato, pastry, and pralines, with contactless optical-sensor gesture control for the rotating mechanism.
Specifications
Dimensions
1408 mm (55.43") diameter · H 1008 mm (39.68") operator side, 859 mm (33.81") customer side
Capacity

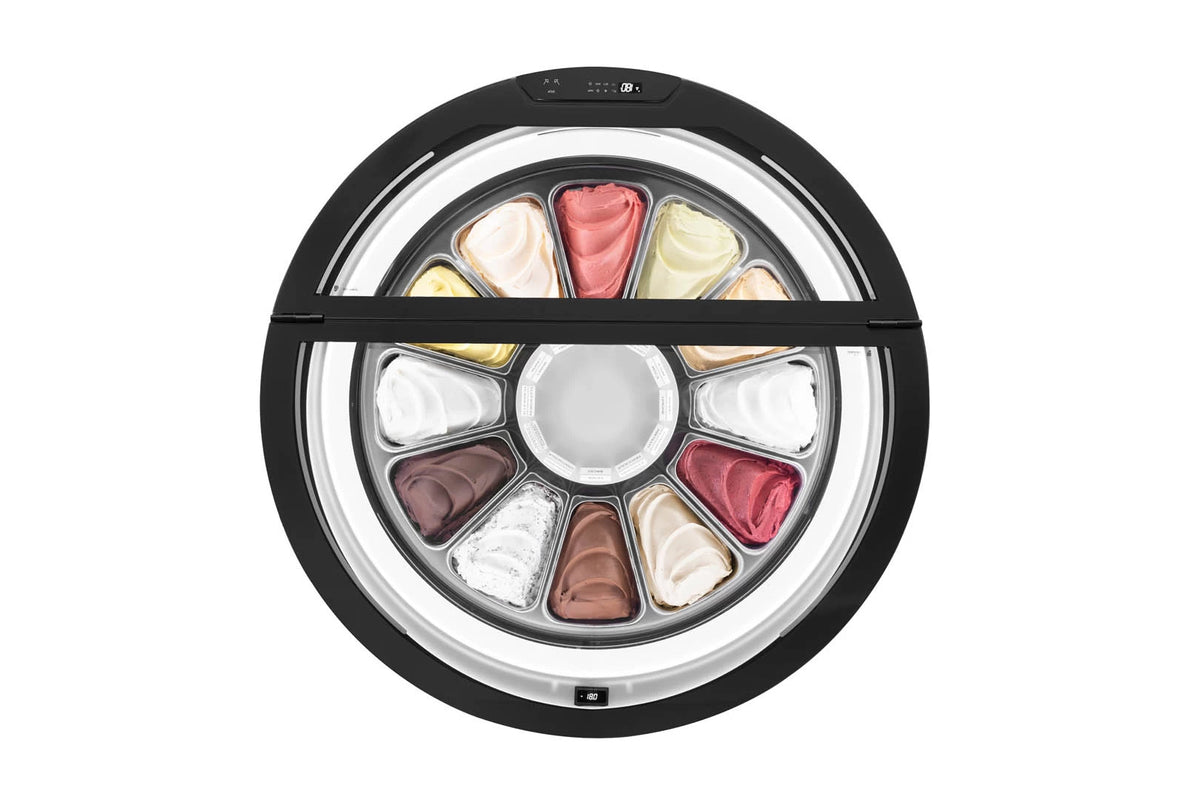

12, 15 or 18 trapezoidal gelato pans · rotates a full turn in up to 4.5 seconds
Weight
661 lb (300 kg) net · 858 lb (389 kg) crated
Details
Gelato: −18°C to −2°C · Gelato/Pastry combination · Praline/Pastry: +14°C to +18°C / +4°C to +8°C
Climatic class 7
Active refrigeration: built-in condensing unit (R290) or remote condensing unit (R452A)
AISI 304 polished stainless steel display surface
Ventilated cooling with radial evaporator for uniform temperature
Side-mounted LED lighting, minimal heat output
Contactless gesture control (optical sensors) for the rotating display
One case body, reconfigured by service and temperature mode for gelato, pastry or praline use, rather than a different physical unit per use case
